Author Topic: Building a Blunderbuss (Read 10532 times)

runastav · « **Reply #25 on:** July 22, 2019, 02:55:52 PM »

Hi Guys! and thank you Curtis and Daryl! Bajonet Lock in work

Runar

ammonia formula

runastav · « **Reply #26 on:** July 24, 2019, 01:18:34 PM »

Hi Guys! Rest of the Lock mecanism done 9 parts in the bajonet . Video show it Works poor pirates ;)Phhu cant show the video

Runar

davec2 · « **Reply #27 on:** July 24, 2019, 11:55:19 PM »

OUTSTANDING !!!!!

Daryl · « **Reply #28 on:** July 25, 2019, 07:43:56 PM »

Touche'

Wonderful!

runastav · « **Reply #29 on:** July 26, 2019, 01:29:50 PM »

Hi ! and thank you guys and Dennis for help With the video. I will use parts I have laying around . Stock European Alder rest from the Gillespie build, Davis John Twiggs Lock ,. BB trigger gard and but plate dont now
Runar

image post

Smokey Plainsman · « **Reply #30 on:** July 26, 2019, 09:31:28 PM »

Does the barrel bore have a taper, or is the bore consistent until it gets to the flare?

mountainman70 · « **Reply #31 on:** July 27, 2019, 03:44:51 AM »

Absolutely AWSOME !!! Runar. Right proper chin whiskers ,too. Have a goodun, Dave f

runastav · « **Reply #32 on:** July 28, 2019, 02:37:16 PM »

Hi all! And thank you guys! Smokey Plainsman, the original I use as a pattern have a very light taper to the flare. My barrel made from Gun metall OM1(CC493K) have 18mm cal to the flare see the start when I make the barrel from start.
The barrel inlett
Runar

Marcruger · « **Reply #33 on:** July 28, 2019, 11:53:13 PM »

I have so much fun reading your posts Runar. I really like your blunderbuss. :-) Go Runar!

runastav · « **Reply #34 on:** July 31, 2019, 11:53:57 AM »

Hi all! and thank you Marcruger! Barrel done, see the original barrel tang screw a woodscrew and so I do

Runar

upload image free

runastav · « **Reply #35 on:** August 03, 2019, 06:00:19 PM »

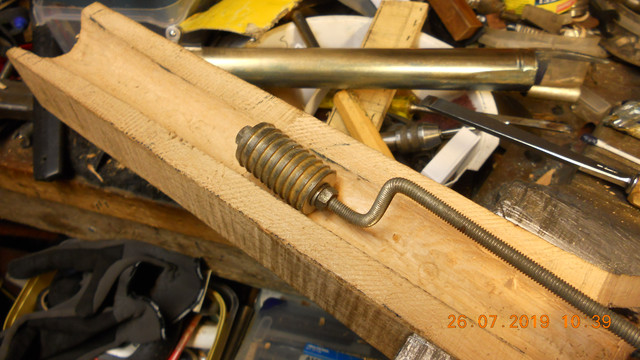

Hi Guys! So its the ramrodhole
Runar

Craig Wilcox · « **Reply #36 on:** August 03, 2019, 07:23:12 PM »

Coming along nicely, Runar. Really like the barrel profile, and now you are adding some brass thimbles to dress it up a bit more.
Enjoy watching you build, very thoughtful.

runastav · « **Reply #37 on:** August 06, 2019, 12:41:12 PM »

Hi guys! and thank you Craig Wilcox! The rear ramrodpipe on original was 2 part solder thogether and so I did

Runar

aluminum and sulfur chemical formula

rich pierce · « **Reply #38 on:** August 06, 2019, 02:39:58 PM »

I’d be hard pressed to keep up with you! Fun project.

Curtis · « **Reply #39 on:** August 07, 2019, 07:05:04 AM »

The thimbles are looking good. It looks like this gun might be fun to shoot!

Curtis

runastav · « **Reply #40 on:** August 12, 2019, 02:30:46 PM »

Hi All! and thank you rich Pierce and Curtis! Lockplate inletted, make Lock screws from wagonbolts(Lucky your Americanos who can shop parts around the corner

)
Runar

image hosting

the soldier by rupert brooke analysis line by line

free image posting

runastav · « **Reply #41 on:** August 14, 2019, 06:32:42 PM »

Hi Guys! The flint Lock in Place.
Runar

runastav · « **Reply #42 on:** August 16, 2019, 03:48:01 PM »

Hi Guys! The trigger
Runar

z names for boys

upload image

runastav · « **Reply #43 on:** August 19, 2019, 02:31:17 PM »

Hi all! Trigger gard, slim it from ca 6mm to 3mm thiknes and made trigger plate.
Runar

Smokey Plainsman · « **Reply #44 on:** August 19, 2019, 11:06:36 PM »

Should make a good home defense gun!

runastav · « **Reply #45 on:** August 22, 2019, 12:44:04 PM »

Hi all! and thank you Smokey Plainsman! Self defens guns in Norway is no no, maby if you are almoust dead

I use this sideplate like I say I use wat laying around.

Runar

free photo host

Pukka Bundook · « **Reply #46 on:** August 23, 2019, 07:42:46 AM »

Runar,

You do nice work, but I do not think you should have fitted that trade gun sideplate.

You have the ability to make a nice sideplate.

Best regards,
Richard.

JoakSte83 · « **Reply #47 on:** August 23, 2019, 12:06:36 PM »

Looks amazing as always Runar, can’t wait for the anual shooting day tomorrow with all the gun collectors

Seeing that dragon sideplate I really hope you will make a replica of the incredibly beautiful Norwegian M1711 skirunner rifle

runastav · « **Reply #48 on:** August 26, 2019, 07:54:26 PM »

Hi all! Pukka Bundook, but I like it

Joakim, yes we have fun like always! And we shot a lot With half auto like my M1 Carbine that the authorety will forbidden!!!!!!Ok, the butt plate
Runar

runastav · « **Reply #49 on:** September 01, 2019, 07:20:52 PM »

Hi Guys! The Blunder Buss in the white
Runar
